ST502 · Load unit

Smart load unit with force and loading-angle measurement

Name: Smart load unit with force and loading-angle measurement
Brand: Sangari
SKU: ST502

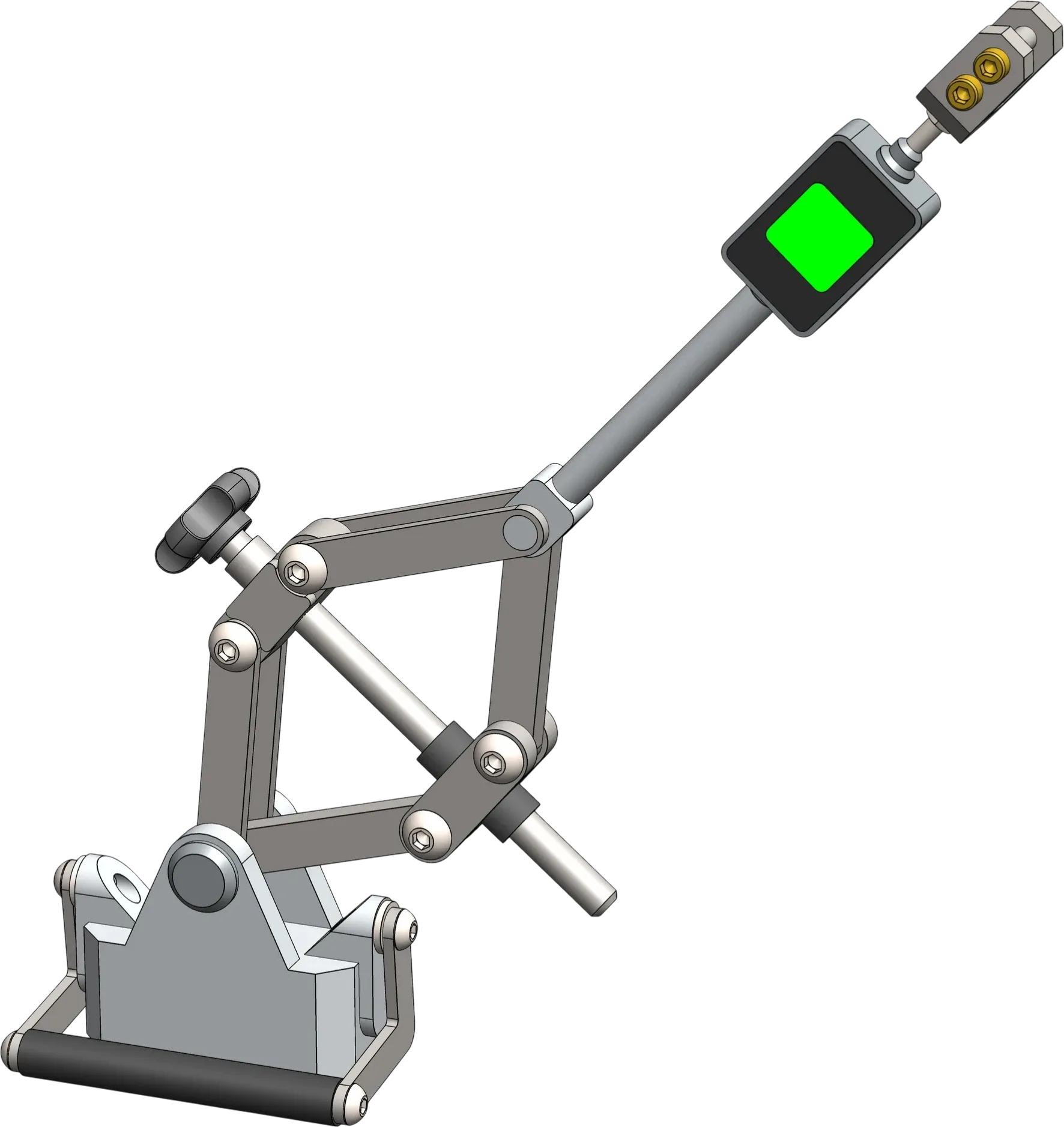

A smart, communication-enabled load unit that generates tensile or compressive forces in any direction and measures both the applied force and the loading angle. Length and angle adjustments are stepless, and two extensions extend the reach for larger experimental geometries. The module clips into the ST500 digital experiment frame without cabling and is identified automatically by position and orientation. Force and angle are displayed on the local OLED and streamed in real time to the Sangari software.

ST502 — Load unit with force and angle measurement

Features

Stepless tensile and compressive forces in any direction
Measures the applied force and the loading angle
Adjustable length and angle depending on the loading task
Two extensions included — expands the working range
Can be installed horizontally or vertically via click system
Plug&Play identification in the host software — no cabling, no configuration
Measured values shown on the local OLED display and in the Sangari software

Compatible experiments

ST551 — forces in a planar truss
ST531 — Euler buckling (applies the axial load)

Host frame

Requires the ST500 digital experiment frame

Mounting quick-release fastener, click system — freely positionable, horizontal or vertical

Load unit

Length adjustment 75 mm

Angle adjustment 45…135°

Extensions

Quantity 2

Lengths 95 mm · 300 mm

Measurement

Force 0…200 N

Angle 0…360°

Display OLED on the module; numeric and graphical in the software

5.7 kg

SPARE
PARTS

15 YEARS

Sangari

WARRANTY

5 YEARS

Sangari

Part of package

Advanced Structural Analysis Lab

A comprehensive series of experimental setups for advanced structural mechanics topics — including truss analysis, beam deflection, frame deformation, column buckling, and material testing.

View package details Request a quote for the full lab
