ST504 · Vertical load

Smart vertical-load hanger with stacked weights

Name: Smart vertical-load hanger with stacked weights
Brand: Sangari
SKU: ST504

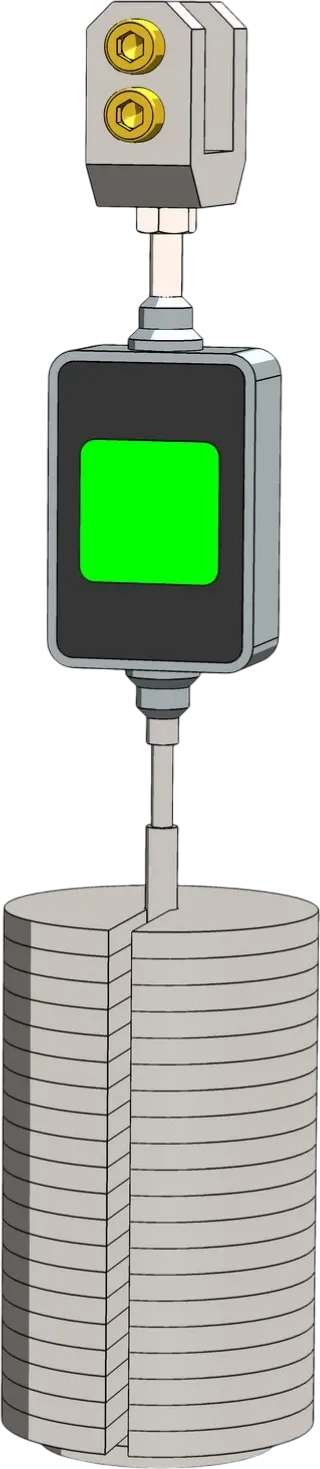

A smart, communication-enabled vertical-load module that applies a purely gravitational load to an experimental structure and measures the resulting weight force with its built-in load cell. The hanger attaches to a node disc or a load support via the click system and is identified automatically by the Sangari software. Three 20 N weights stack on the hanger to vary the load in discrete steps, and the reading is shown on the local OLED as well as in the software. Used with truss, bridge and beam experiments on the ST500 frame.

Features

Applies a purely vertical weight force to truss, bridge and beam setups
Hangs from a node disc or a dedicated load holder via click system
Stacked weights allow discrete load variation — up to 3 weights
Force measured by the built-in cell and displayed on the module
Plug&Play identification in the host software — no cabling

Compatible experiments

ST551 — forces in a planar truss
ST553 — parabolic arch bridge (centre load)
ST554 — three-hinged arch (centre load)
ST555 — Gerber beam (centre load on the suspended beam)

Host frame

Requires the ST500 digital experiment frame

Mounting click into a node disc or a load holder

Weights

Max. weights 3

Force per weight 20 N

Measurement

Force 0…200 N

Display OLED on the module; numeric and graphical in the software
